Rottne H8 - an updated classic for stand-operating thinning!


10 200 kg (22 488 lb)


125 kW (168 hp)


245 liter/1700 rpm



137 kN (30 778 lbs)

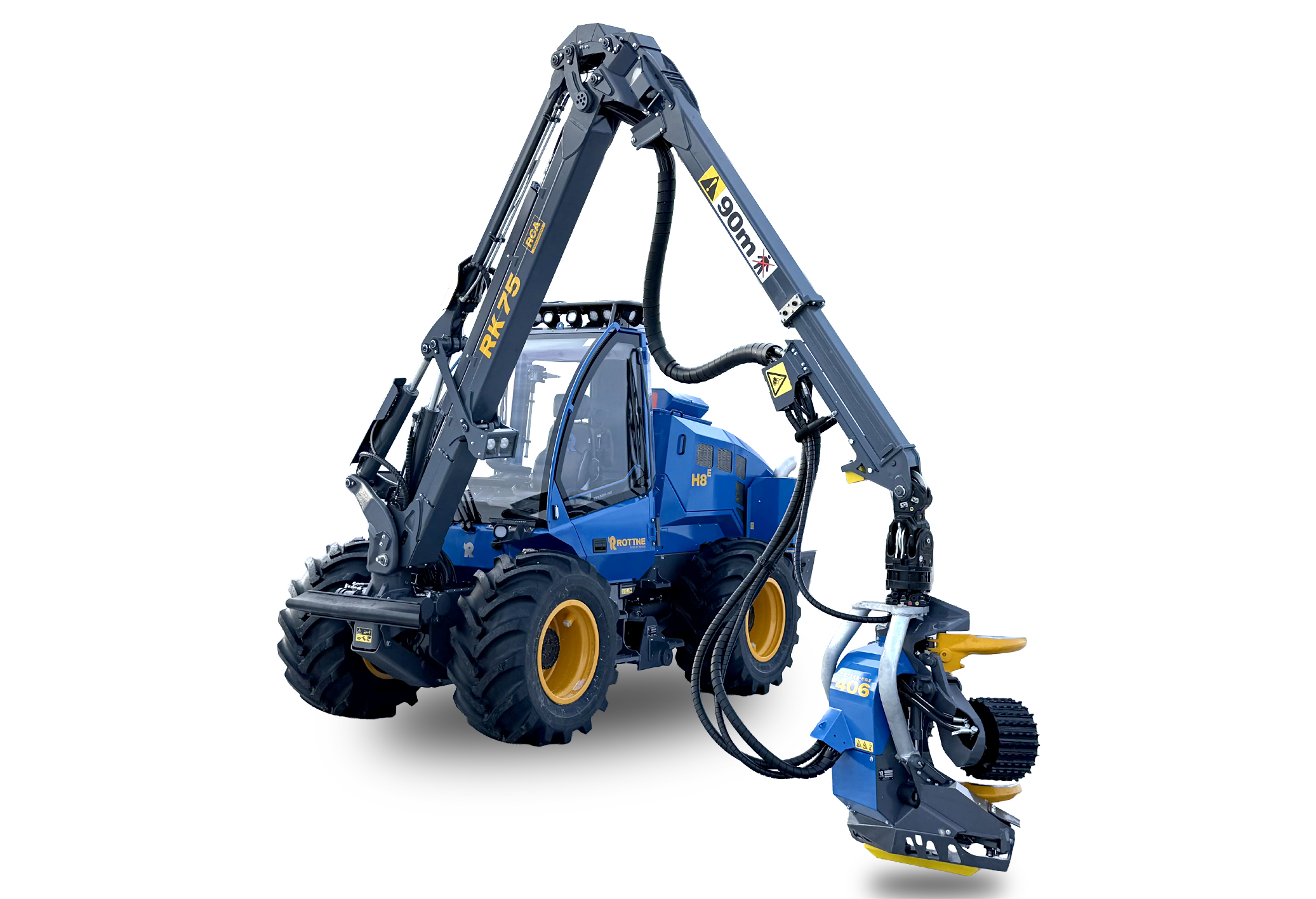

Rottne H8E is a small and versatile harvester with unique characteristics including exact tracking, swing arms on the wheels, variable transmission and automatic anti-spin. This makes it very easy-to-operate with minimum space requirements, providing the conditions for smooth and fluent thinning and an undamaged stand – as well as high productivity.

Designed for stand-operating thinning

Rottne H8E is an ideal harvester for stand-operating thinning and with various working route system options it can handle strip road distances without manual intermediate zone felling.

Since Rottne H8E works inside the stand, it’s easier for the operator to decide which trees need to be thinned, as it is never more than 6–7 metres to the trees. This means more uniform thinning extraction, which gives both greater volume and added value and probably also a less storm sensitive stand. In other words, Rottne H8E gives good conditions for a timber rich forest

Sort by specifications
Compare products (choose max 2 products)
Engine type
JD 4045C I550 Power Tech Plus PSS Steg V test

Diesel or HVO

AdBlue tank
10 litres (2,6 US gal)

Engine output
125 kW (168 hp) at 2000 rpm

Engine torque
667 Nm (492 lb ft) at 1500 rpm

Cylinder volume
4.5 liter

Fuel tank
268 liter

Transmission type
Fully hydrostatic with hydraulic wheel motors and 3 gear steps. Antispin.

Tractive force
137 kN (30 778 lbs)

Speed, gear 1
0 - 6 km/h (0 - 3.7 mph)

Speed, gear 2
0 - 12 km/h (0 - 7.5 mph)

Speed, gear 3
0 - 24 km/h (0 - 15 mph)

Brakes type
2-circuit electrically/hydraulically operated negative wet disc brakes. Automatic load brake. Spring-assisted parking and emergency brake.

Wheel equipment
Wheel equipment 4 WD
500/60 x 26,5*, 600/55 x 26,5**, 710/45 x 26,5*

Steering angle
+/- 43°

Chassi type
Variable height level with wheel arms

Max. steering touque
32,7 kNm (24 120 lbf ft)

Hydraulic system
Hydraulic system type
Load sensing hydraulic system

Working pressure crane

Working pressure harvester head
3.0 - 25.0 MPa (435-3625 psi)

Degree of filtration
10 micron

Working pressure
3.0 - 25.0 Mpa (435-3 625 psi)

Pump capacity
245 litres / 1700 rpm

Tank volume
100 litres

Electrical system
2 x 142 Ah

Electrical system
24 volt electrical system with CAN-bus technology.

150 A

Machine control system

Bucking system
ROTTNE Forester

15" touchscreen

Working lights
20 st

Cab type
Spacious, vibration-proof safety cab. ISO certified

Noise level
65 dBA

Climate system

Crane type
Parallel jib arm crane, RK75, with tiltable swing base and 1.4 m (4.6 ft) telescope.

Tiltangle forwards

Tiltangle backwards

Lifting torque
90 kNm (66 380 lb ft)

20 kNm (14 751 lb ft)

Angle of rotation

7 m (23 ft)

Weight & Dimensions
Service weight from
10 200 kg (22 488 lb)

2 050 mm* (81 in), 2 200 mm**, 2 420 mm***

4 834 mm (190 in)

Transportation height
3 047 mm (120 in)

Ground clearance (at articulated frame lock)
285 - 1067 mm (11-42 in)

The specification describes possible equipment, not what is standard or optional. What constitutes standard equipment or optional varies across our different markets. Weights are based on the specified equipment in the basic specification.

We reserve the right to change specifications without prior notice


The pendulum arm technology evens out the steepness of the terrain in all directions. The four wheel arms have a large swing movement, which means levelling can equal out both lengthways and sideways inclines, as well as give good ground clearance over rocky and uneven terrain. Space requirements are minimised and weight distribution
improved so that processing can be performed at full reach even laterally with maximum stability.



The spacious and comfortable cabin with its large windows provides an excellent view of the entire working area. The cabin swivels +/- 90 degrees, levels 15 degrees and automatically follows the crane from side to side, but
can also be controlled manually with joysticks. We have the same cabin for all our harvesters. The interior of the cabin,
distribution box, computer equipment and control functions are, therefore, identical, which makes it easy for the operators to switch between our different machine models. Noise levels in our cabins are quieter than in cars. Our cabins are leaders in ergonomics among the forestry machines.



ROTTNE FORESTER is a quick and easy-to-use bucking system that is used in all our harvesters. A large touchscreen used for both Forester and D5 computers shows information in a well-arranged manner and makes it simple to
program different settings. With Rottne Forester, it is easy to produce automatic digital reports that could be sent directly to your company’s office while you are still finishing your work with an object. It is also possible to print these reports using the cabin printer or copy to a USB flash drive.

THE ROTTNE D5 MACHINE CONTROL SYSTEM, which is based on CAN-bus technology, controls and monitors the engine, transmission and crane. The system comprises a main computer and a number of control units
on the machine. The operator can adjust settings for the crane, transmission and engine, monitor pressure, temperatures and fluid levels and perform troubleshooting via the touch screen. Alarms are indicated by visual and
audible signals and in clear text on the screen.


Since H8E works inside the stand, it is easier for the driver to decide which trees need to be thinned as there is never more than 6-7 meters to the trees. If you also opt for Rottne Crane Assistance boom tip control, you get more precise movements and a good harmony in the crane, which means that thinning optimizes. The driver decides which direction the harvesting head should go, and the system and the crane ensure that it is carried out. The boom tip control is easy to set and adapt for different drivers and provides good support to the driver during the entire
shift as all crane functions have end damping to provide a smoother driving experience while reducing wear and tear on the crane.
